  1. Blum Aventos Lift-up systems
  2. AVENTOS HK-S set (Dark Grey)

AVENTOS HK-S stay lift set (Dark Grey)

Our Price: £42.65

Finish: Dark Grey

Application: Lift System

Lead Time: Dispatched within 24 Hours


POWER FACTOR


QUANTITY

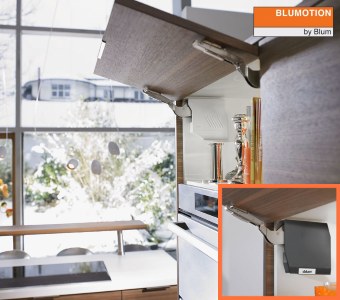

AVENTOS HK-S stay lift set - Dark Grey

The Aventos HK-S lift-stay is ideal for small doors and won't collide with design elements such as cornice. Sets are simple to install and smooth to operate, allowing unobstructed access to overhead cabinets.

The surface-mount mechanism installs to the cabinet side and eliminate the need for further hinges. The mechanism uses a clip-on feature, allowing doors to be removed without tools.

The lift mechanism effortlessly lifts the door through 107° while the variable stop ensures the fascia remains in the desired location. Should you need to limit the opening range due to available clearance, 75° restrictors are available.

As the door closes, integral soft-close dampers effortlessly and silently draws the door to a controlled close.

  • Brand: BLUM
  • Finish: Dark Grey
  • Application: Stay Lift System
  • Fixing method: Screw-on
  • Min. Int. Cab. Depth: 240mm
  • Min. Int. Cab. Height: 150mm
  • 400 – 1000 Power Factor — to fit fronts 283 high up to 800 wide
  • 960 - 2215 Power Factor — to fit fronts 360 high up to 1200 wide
  • 1 set is required per cabinet
  • The door flap must be a maximum height of 600mm
  • If you are not sure about which power factor, please email your cabinet dimensions and type of door you are using.

What's Included

  • 2 x Lift mechanisms
  • 2 x Plastic covers
  • 2 x Inline mounting plates
  • 1 x Instructions

AVENTOS HK-S installation guides > (PDF open in a new window)

This product is in stock, return is possible with a 25% re-stock fee and transport at your own cost.
