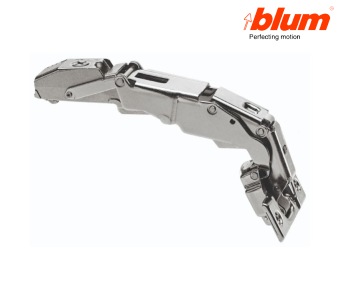

155° CLIP top BLUMOTION Nil Protrusion hinge

Wide angled hinge used to prevent inner pull-outs from colliding with the rear of the opened cabinet door.

BLUMOTION is integrated in the hinge boss - Impeccable, clock-like precision. Integrated soft-close is innovative technology at its best. Effective and integral to delivering soft and effortless closing to cabinet doors.

Perfect motion for every door - Soft-close BLUMOTION adapts to the dynamics of every door. So all doors have a smooth closing action regardless of size, weight or force with which you close them.

Soft close geared to your needs - The BLUMOTION feature can be deactivated to ensure that even smaller or lighter doors boast top quality motion.

Three-dimensional adjustment - CLIP top BLUMOTION triple advantage: Easy side, height and infinitely variable depth adjustment with spiral screw. What’s more, several mounting plates have cam height adjustment.

Door Thicknesses & Opening Angles - Please Note: Works with the full opening angle of 155° for door thicknesses 20 – 24mm. For 25 – 27mm doors the 110° angle stop is required, above 27mm the 92° angle stop is required.

• Brand: BLUM
• Material: Steel
• Finish: Nickel Plated - ONYX Black
• Application: Overlay
• Closing Mechanism: Sprung
• Fixing method: Screw-on (Screws for hinge not included)
• Door Thickness: 16 - 24mm
• Depth Adjustment: +3mm / -2mm
• Side Adjustment: +/- 2mm
• Height Adjustment: +/- 2mm
